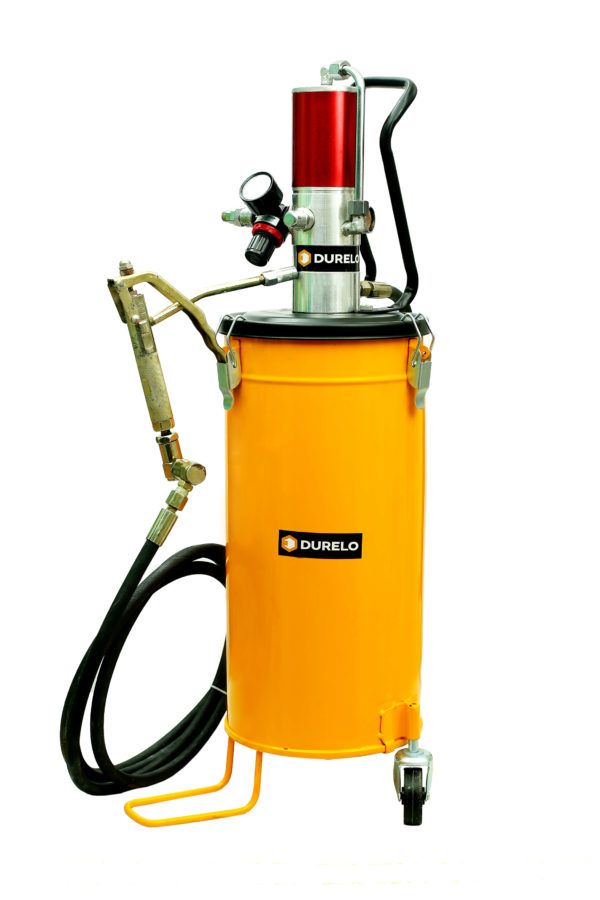

AIR OPERATED GREASE RATIO PUMP 50:1, Capacity 15Kg

• Best in class, easy to use high-pressure grease ratio pump dispenses grease upto 50 times the air inlet pressure.

• Grease with high viscosity is injected by high pressure created from reciprocating pump.

• Ideal for use in automobiles, tractors, earthmoving equipment’s, workshops for bulk greasing applications.

• Supplied complete with heavy duty steel drum with sturdy 5” wheels, drum cover, rubber follower plate, 4mtr (168”) long R2 high pressure grease hose along with z-swivel grease gun extension & coupler.
• Pump is recommended for use with clean grease upto NLGI 2

CAUTION
Pump must be supplied
with clean & dry compressed
air through FRL unit.

Donot run the machine without
Loads while grease is insufficient
In barrel.

Technical Specification:
Preasure Ratio: 50:1
Recommended working Pressure: 5-8Bar
Maximum Working Pressure: 10Bar
Grease Output: Upto 0.85 ltr/min
Transmission Pressure: 300-400Bar
Blocked Pressure: Upto 500Bar
Delivery Hose Id: 6mm
Delivery Hose Length: 4mtrs/4000mm
Capacity: 15Kg
